68rfe Stage 1.5

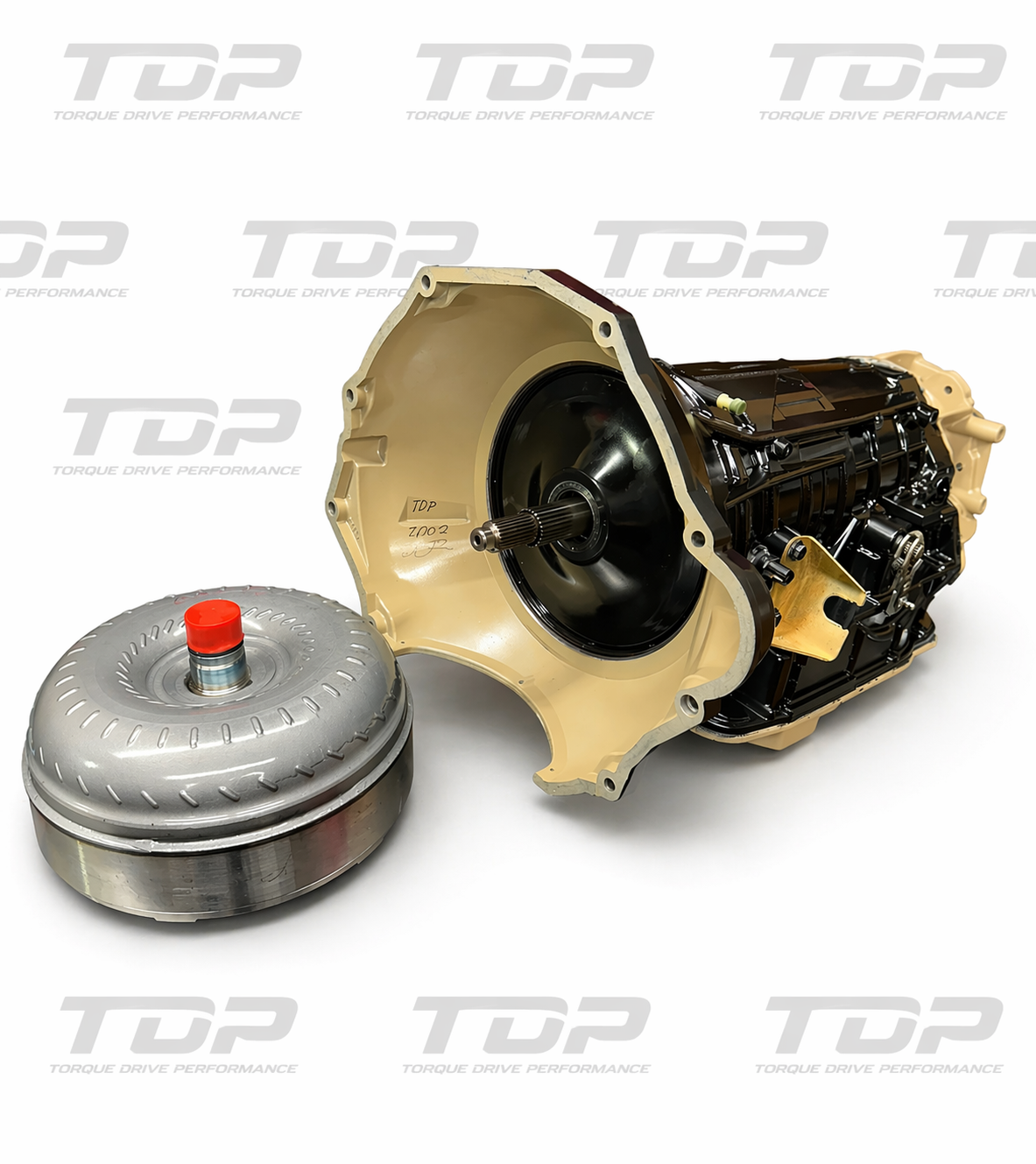

TDP Stage 1.5 – 68RFE Performance Transmission

The TDP Stage 1.5 68RFE is built for drivers who want noticeably more strength and responsiveness than stock, without stepping into an overly aggressive tow-specific or race-only setup. This unit is ideal for daily-driven trucks running tuning —perfect for weekend fun, spirited driving, and occasional towing.

This transmission focuses on improved clutch capacity, hydraulic stability, and converter performance while maintaining smooth drivability and long service life.

Features & Upgrades

• Bonded pistons for improved durability and sealing

• BorgWarner friction materials

• Brand-new solenoid assembly

• Complete overhaul kit

• New OEM speed sensors and line-pressure transducer

• Billet HD torque converter

• Torrington bearing kit

• All new bushings throughout

• Deep goerend pan

• New OE borg sprag

• Billet spin-on filter adapter

• Billet overdrive pressure plate allowing additional OD clutch capacity (14 single sided)

• TDP Pro Shift valve body calibrated for 225 PSI

• Valve body fully vacuum-tested; any valve that fails testing is oversized using Sonnax components

Tuning & Calibration Requirements

• TCM calibration must be data-logged and approved by Thompson Diesel Performance after installation

• If tuning parameter guidance is required, please reach out to us prior to or during tuning

• Failure to submit data logs for approval may result in denied warranty coverage

Tire Size & Gear Ratio Requirement

• Tire size must correctly match the axle gear ratio per the approved gear ratio chart

• Incorrect tire size combined with an improper gear ratio will result in immediate warranty void

• Proper tire-to-gear matching is critical for shift timing, clutch load, and transmission longevity

Warranty Information

• 2-Year Unlimited Mileage Warranty

• Warranty coverage is contingent upon:

  • Approved TCM calibration

  • Proper tire size and axle gear ratio match


  • Proper installation and maintenance

Availability

No current wait time on 68RFE units

Shipping

Shipping is not included in the listed price. Shipping options are available upon request or at checkout.
